ELITE Laser, Radiofrequency, Ultrasound, Cooling and Transdermal delivery.
ELITE Versatile and cutting-edge platform. Elite is a platform with a modular design that offers multiple application solutions for the treatment of a wide variety of facial and body imperfections. Always in step with the times and constantly evolving, the device has numerous applicators with which the platform can be updated and implemented; these modules can be purchased and integrated into the device at different times, offering full versatility and autonomy in the management of the purchase.
A MULTI-FUNCTIONAL AND MODULAR PLATFORM, APPLICABLE FOR THE FACE AND BODY, WHICH ENABLES THE CONTROL OF COUNTLESS TECHNOLOGIES.
Elite represents a unique innovation within the panorama of aesthetic technologies; one that fully addresses the professional’s needs. Thanks to a modular design, it offers numerous application solutions, seamlessly integrated in a single compact and reliable device.
Constantly evolving, the platform always develops new upgrade modules whose purchase can be managed independently.
Every wish is granted. All the treatments at your disposal
Modular and multifunctional technologies for the rejuvenation of the body and the face. Versatile and cutting-edge, compact and reliable, it offers complete versatility in its usage, fully answering the professional’s requirements and the needs of the client.
Regenerating the superficial tissues of the body
FLASH RF - It uses modulated suction and vacuum for regeneration treatment, specific for the superficial tissues of the body, increasing cellular metabolism and promoting lymphatic drainage.
Remodeling tissues and reactivating circulation
ENDOLASE - It combines laser, cryo and endodermal massage to trigger three different processes in the tissue: laser reactivates and amplifies arterial, venous and lymphatic microcirculation and promotes neoangiogenesis of intradermal vessels, the cryo reduces edema and the endodermal massage promotes lymphatic drainage.
Remodeling tissues deeply
SUB RF - The SUB RF handpiece uses the beneficial effects of monopolar radio frequency
and rhythmic aspiration to improve circulation (vasodilation and hyperemia)
and the drainage of fat deposits in the lymphatic system
Cellulite reduction by modifying the dermis
SONOBEAT - It uses high frequency sound waves and rhythmic vacuum for a tissue massage with multiple properties, useful for the treatment of cellulite, for tissue toning and for the treatment of edemas of various origins.
Remodeling the tissues of the face
CFU - The ultrasound treatment that concentrates the energy precisely in the skin layer to treat, at the desired depth, regenerative thermal energy for the treatment areas.

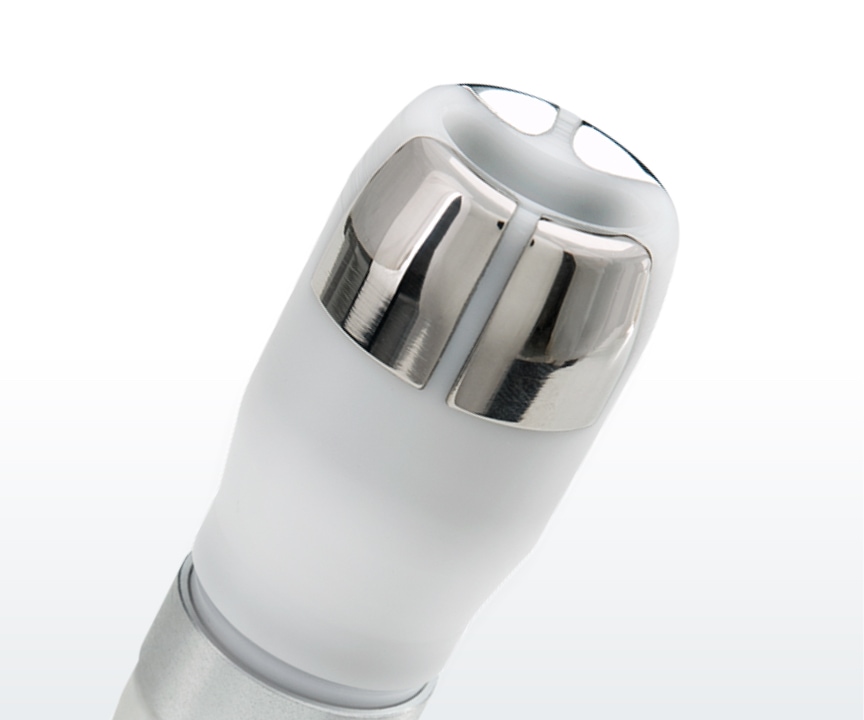

Restores skin elasticity
FLASH CTR - FLASH CTR emits bipolar radio frequency and rhythmic vcuum, to promote superficial skin elasticity.
Reduction of skin laxity
SUB CTR - SUB CTR produces heat deep in the dermis through the conversion of electric current into thermal energy, and it is the monopolar radio frequency treatment for the face used to treat skin laxity.
Elimination of scars and skin imperfections
FRACTION RF - The treatment that combines the action of radiofrequency, microneedling and vacuum to treat scar tissue, stretch marks and combat skin laxity.
Delivery of active ingredients
MESO - The handpiece uses electroporation to convey actives with different functions such as bio stimulants, vitamins and amino acids.
Reduction of localized fat deposits
BIOSHAPE - New treatment for localized adiposity of the body and restoration of its contours.
It uses the combined action of vacuum, controlled cooling and electrical impulses, with the aim of gradually reducing the thickness of the panniculus adiposus.
Biosculpting for facial tissues
FACEFORM - Facial contour treatment based on skin stimulation, while combining electrostimulation and tissue cooling cycles. It aids in defining contours, draining tissue and in restoring muscle tone.
UP-TO-DATE PERFORMANCE
Always current, with up-to-date applications at your disposal.
Biotec Italia platforms introduce a new concept linked to performance. Latest generation hardware and software structures, designed by BIOTEC ITALIA R&D researchers, designed to be updated, permitting the definitive elimination of obsolescence.
Technical specifications
Elite Laser, Radio frequency, Ultrasound, Cooling and Transdermal delivery.
General technical specifications
| SUPPLY VOLTAGE | 230 Vac 50/60 Hz |
| MAXIMUM POWER | 600 VA |
| FUSES | 2 x F4AL 250V |
| SAFETY CLASS AND TYPE OF PART APPLIED | I BF |
| DIMENSIONs (W x D x H) | 680 x 470 x 1400 mm |
| WEIGHT | 63 kg |
Handpiece technical specifications
CFU
FREQUENCY 3 mHz
OF ACTION AND DEPTH 1.5 mm to 11 mm
FLASH CTR
HANDPIECE FUNCTIONS Bipolar
FREQUENCY 400÷1000 kHz
MAXIMUM POWER MAX 50 W
SUB CTR
HANDPIECE FUNCTIONS Monopolar
FREQUENCY 400÷1000 kHz
MAXIMUM POWER MAX 50 W
FRACTION RF
HANDPIECE FUNCTIONS Monopolar
FREQUENCY 400÷1000 kHz
MAXIMUM POWER 25 W
MESO
BEARING FREQUENCY 1 kHz
MAXIMUM INTENSITY ON THE ELECTRODE PLATE 0.8 m every 10 cm2
FLASH RF
HANDPIECE FUNCTIONS Bipolar
FREQUENCY 400÷1000 kHz
MAXIMUM POWER MAX 50 W
ENDOLASE
NUMBER OF INFRARED LASER DIODES 4
WAVE LENGTH PEAK 980 NM
POWER DENSITY MAX 10 mW/cm2
SUB RF
HANDPIECE FUNCTIONS Monopolar
FREQUENCY 400÷1000 kHz
MAXIMUM POWER MAX 50 W
SONOBEAT
MAXIMUM VACUUM INTENSITY -50 cmHg
OPERATING MODE Continuous/Pulsed
MAXIMUM INTENSITY 1.5 W/cm2
ULTRASOUND FREQUENCY 1 mHz
BIOSHAPE
MINIMUM TEMPERATURE 0° c
OPERATING MODE Continuous
MAXIMUM VACUUM -50 cmHg
FACEFORM
MINIMUM TEMPERATURE 0° c
OPERATING MODE Continuous
MAXIMUM VACUUM -50 cmHg
Focus on the technology
DUOSHAPE
Ultrasound transforms electricity into waves. Inside the tissues, they cause the breakdown of the cell membrane of the adipocytes, inducing the release of lipids which will then be reabsorbed (lymphatic circulation) or eliminated (lymph nodes and digestive system).
RADIOFREQUENCY
The technology that uses monopolar radiofrequency provides heat by creating a stronger thermal response, distributed more accurately in all layers of the skin.
DEEP FACE
In Bipolar mode, the current flows only into the tissue between the two electrodes on the tip of the applicator. Heating in this case affects only the surface of the tissue.
FLASH FACE
It uses monopolar radio frequency and can be combined with rhythmic vacuum. The electrical impulse is transmitted deep into the dermis thanks to the vacuum that allows the perfect coupling of the skin electrode.
SKINFRACTION
The area of tissue to be treated is aspirated and the micro-needles penetrate the skin (the depth of penetration is adjustable according to the length of the needle). Monopolar radio frequency is emitted over the entire length of the needle to induce stimulation of the deep dermis.
Elite: unmistakable high-tech.
The most advanced technology for the transdermal delivery of active ingredients, to guarantee the maximum effectiveness of the cosmetic preparation.
The design of innovative waveforms that generate regenerating and activating electrical impulses for the skin.
Ergonomic and innovative applicators and handpieces, built with the latest generation materials to offer incomparable benefits for both the customer and the operator.
Ultrasonic energy modulated to act exclusively at the desired depth, generating focused thermal energy.
Contact cooling on the handpieces to ensure safety, comfort and effectiveness of the treatment.
Cooled technologies thanks to the active circulation of fluid, to allow maximum reliability and durability of electronic and mechanical components.
Security systems that constantly monitor the temperature reached on the skin by reporting the data on the monitor, ensuring safe and reproducible protocols (only for FACEFORM and BIOSHAPE).
Clinical cases
Technologies for professional aesthetics. Effective results, targeted treatments and non-aggressive methodologies: the heart of professional aesthetics devices is ever more technological.
